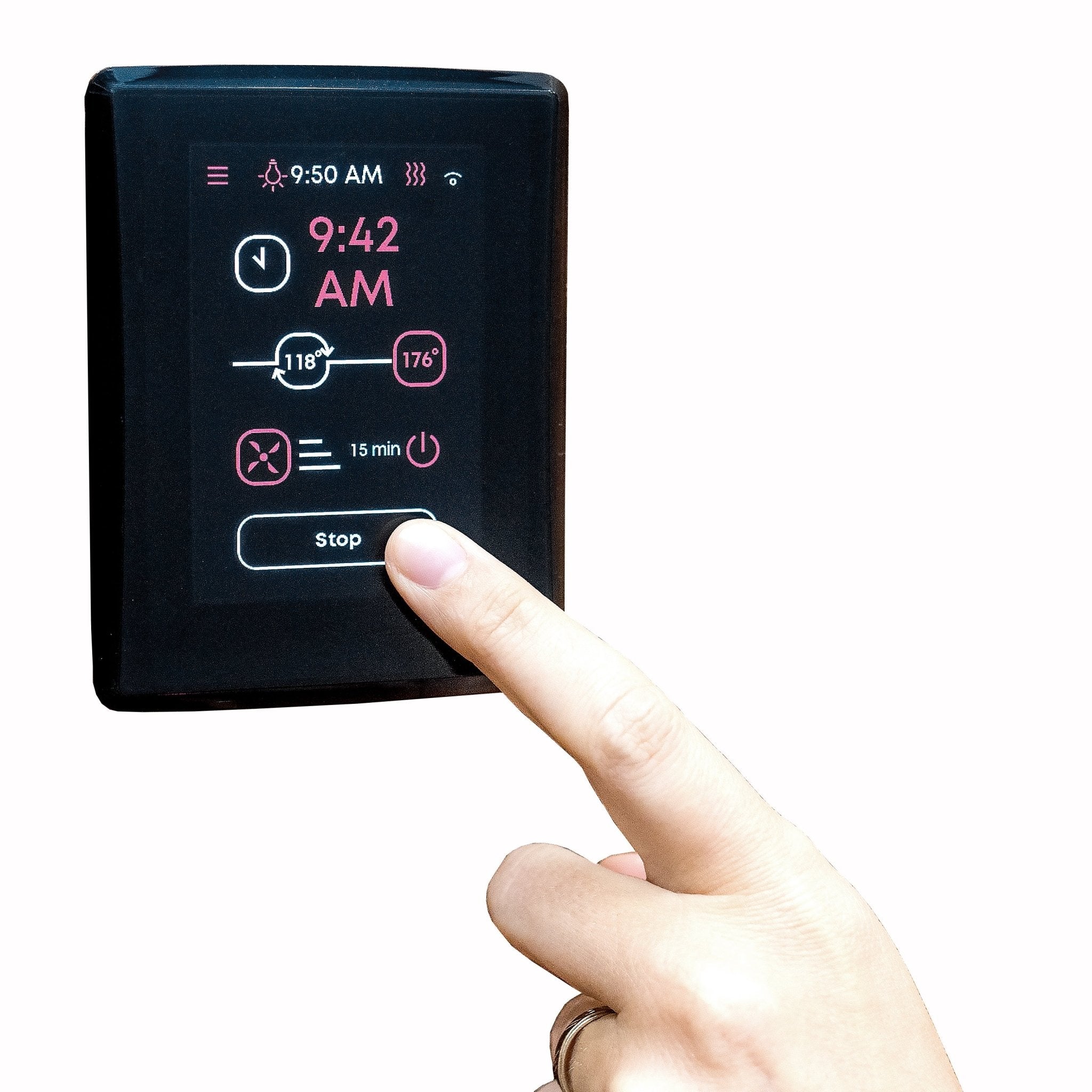

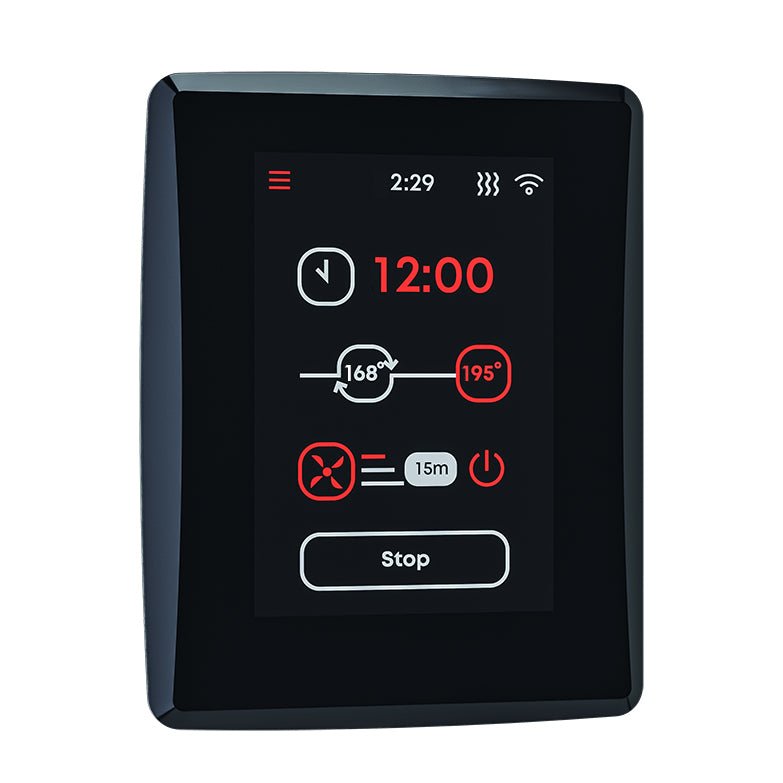

Saunum AirIQ WiFi Sauna Heater Controller

Easily control the Saunum heater and climate device with just a few taps on the screen.

• Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
• Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
• Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
• Classic Nordic Steam Saunafor temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
• Humid Steam-rich Saunafor temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
• Mild, Relaxing Saunafor temperatures from 104 °F – 131 °F  (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
• AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.

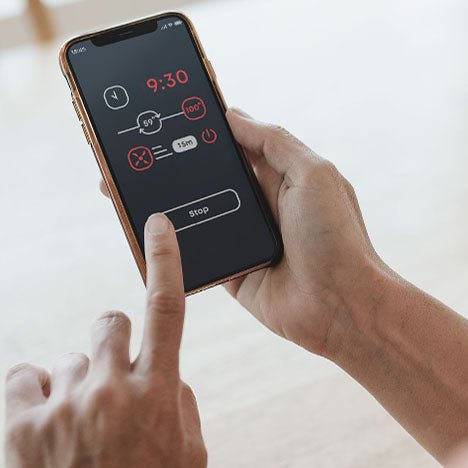

• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
• ModBus integration for smart home connection
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app. Sauna is Ready Heating Status Door is OpenOverheating protection applied.
• Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
• Outside Sauna room installation
• Screen lock
• Child Safety Lock
• Temperature Sensor
• Door Sensor

• Soft-Touch Display Panel (Wi-Fi App-Based Updates & Operation)
• Wall Mounting Plate & Fasteners
• Power Unit
• Installation & Operation Manual
• Limited Warranty

Model

AirIQ Wi-Fi

Certification/Global Safety Rating

UL (Underwriters Laboratories)

Type

Digital, Soft-Touch

Response

Tactile with Haptic Feedback Technology

Language Selection

16-Languages

Wi-Fi Capability

Wi-Fi, App-Based Updates & Operation

Notifications

Sauna is Ready, Heater Status, Open Door, and Overheating Protection

Safety Features

Admin, Screen Lock, Door Sensor, and Overheat Protection

Color

Nordic Black

Heat Equalizing Control

3-Speed Adjustability

Depth

.8" (20.32 mm)

Width

3.3" (83.82 mm)

Height

4.1" (104.14 mm)

IP Rating

IP20

Minimum Temperature Setting

104-Degrees Fahrenheit (40-Celcius)

Maximum Temperature Setting

194-Degrees Fahrenheit (90-Celcius)

Duration Timer

1 - 6 Hours

Display Panel Cable (included with heater)

4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)

Door Sensor & Cable Assembly (included with heater)

2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)

Door Sensor Probe

1" Long and .24" Diameter (25 x 6 mm)

Operating Temperature Range

-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)

Programmability

Weekly Scheduling with Three Programmable Sessions

Temperature Settings

Fahrenheit or Celsius

Region Settings

North American and European Versions

Room Temperature Sensor (included with heater)

Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

Certification/Global Safety Rating

UL (Underwriters Laboratories)

Operating Voltage

240VAC 1 Phase

IP Rating

IP64

Depth

2.36" (59.94 mm)

Width

6.5" (165.5 mm)

Length

10.11" (256.79 mm)

Operating Temperature

-4 - 113-Degrees Fahrenheit (-20 - 45-Celcius)

Click Here for the Saunum AirIQ Control Installation & Owners Manual

Click Here for the Saunum AirIQ Specs

Click Here for the Saunum AirIQ Warranty

Free Scheduled Shipping

The Saunum AirIQ ships by parcel or freight depending on the selected package configuration and add-ons.

Once your order ships, tracking information will be provided. If your order ships by palletized freight, the carrier will contact you directly to schedule delivery.

Shipping timelines may vary based on inventory, package configuration, accessories, and seasonal freight conditions. Contact NW Immersion before ordering for the most current lead time.

Click Here for the Saunum AirIQ Warranty

Saunum Manufacturer Warranty

The Saunum AirIQ is backed by Saunum’s manufacturer warranty against defects in materials and assembly for the applicable warranty period. If the device is found to be defective due to materials or workmanship during the warranty period, Saunum’s recommended repair partners may repair or replace the device or defective component under the warranty terms.

For private residential sauna use, the warranty period is 2 years from the date of purchase. For public sauna use, the warranty period is 1 year.

Warranty coverage requires that the device be installed properly, including connection to the power network by a qualified electrician in accordance with applicable regulations. A completed installation report must also be submitted with any warranty claim.

The warranty does not cover routine maintenance, normal wear and tear, misuse, improper installation, unauthorized repairs, transport risks, damage from accidents or external factors..

As an Authorized Saunum Dealer, NW Immersion is here to help with heater sizing, product selection, delivery coordination, installation guidance, warranty documentation, and support if an issue arises.

Please review the linked Saunum warranty PDF for complete terms, exclusions, and claim requirements before installation and use.
