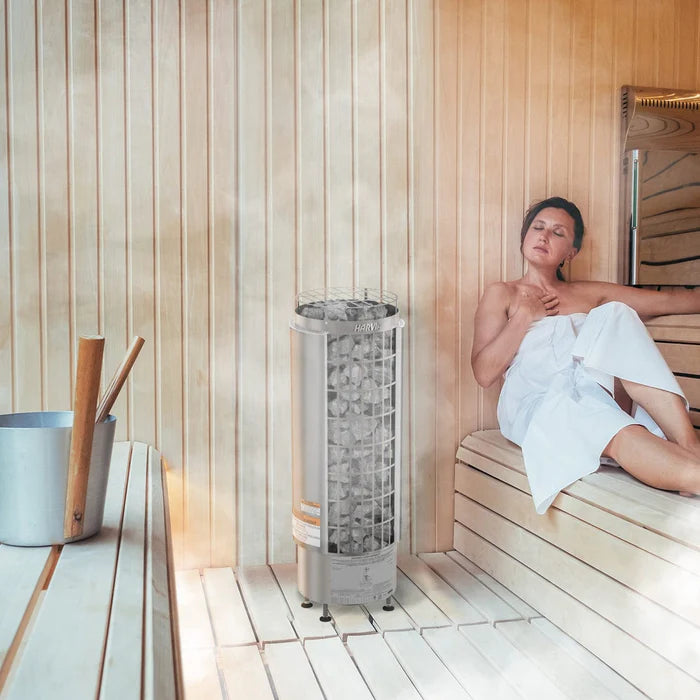

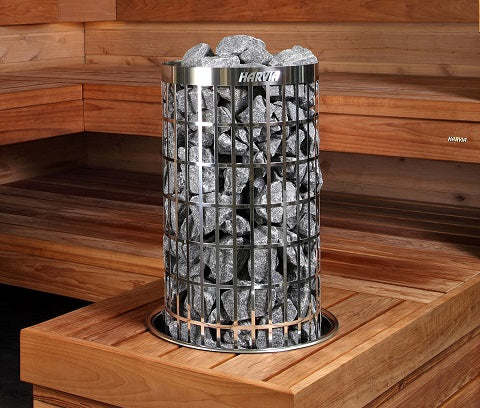

Harvia Cilindro PC90E 9kW Electric Sauna Heater | Complete Package Options

Powerful 9kW Performance

The Cilindro PC90E is designed for sauna rooms approximately 141–494 adjusted cubic feet, making it a strong choice for medium to larger residential sauna rooms and outdoor sauna kits.

Large 200 lb Stone Capacity

The generous stone volume helps create softer, more lasting heat and a more satisfying löyly experience compared with heaters that hold fewer stones.

Authentic Finnish Löyly

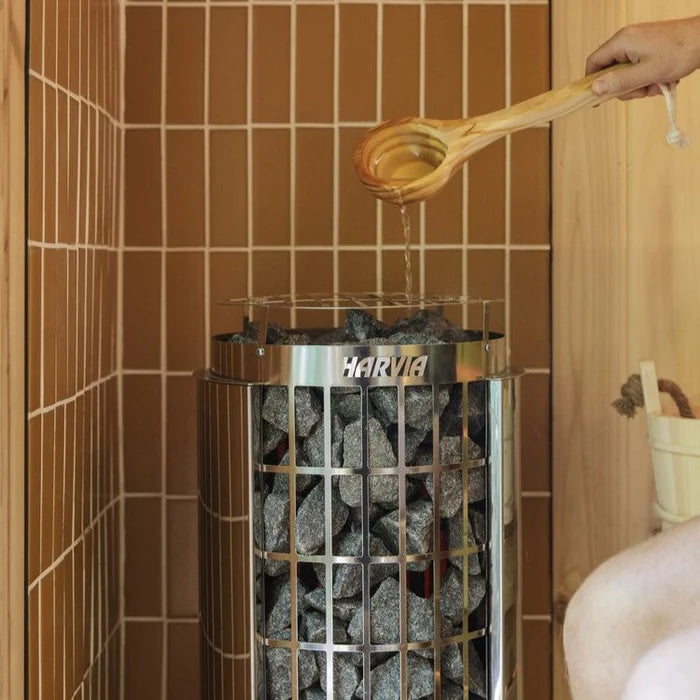

Pour water over the heated stones to create steam, humidity, and the atmosphere that define traditional Finnish sauna bathing.

Flexible Steam Intensity

The open pillar design allows you to pour water onto different parts of the stone column, creating either a gentler steam or a more intense burst of heat.

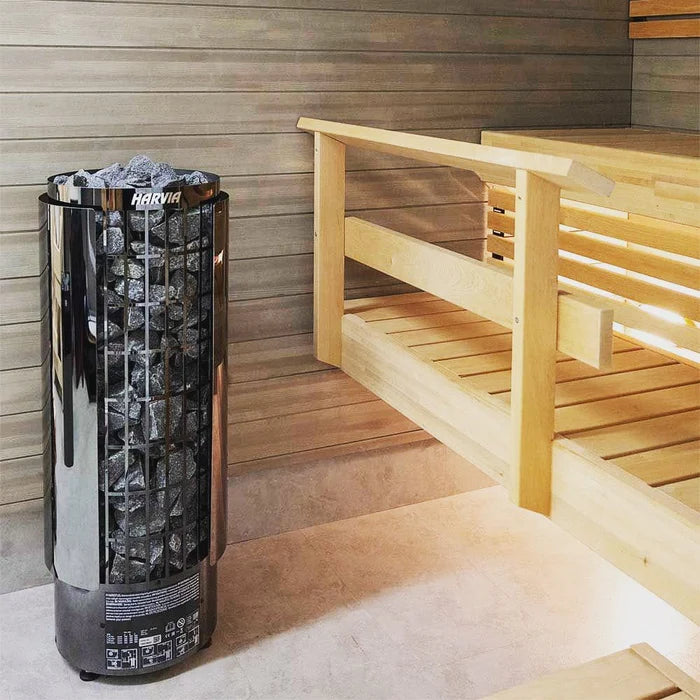

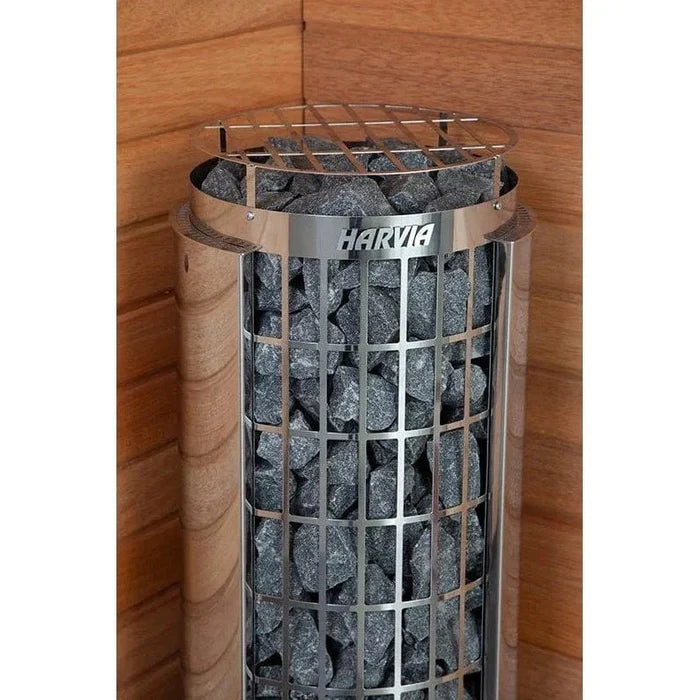

Modern Stainless Steel Pillar Design

The tall cylindrical form creates a striking architectural focal point inside the sauna while maintaining a slim, space-conscious footprint.

External Control Compatibility

The PC90E requires a separate compatible Harvia control system, giving you the option to choose a Xenio or Fenix control package depending on your preferred interface and feature set.

Flexible Placement Options

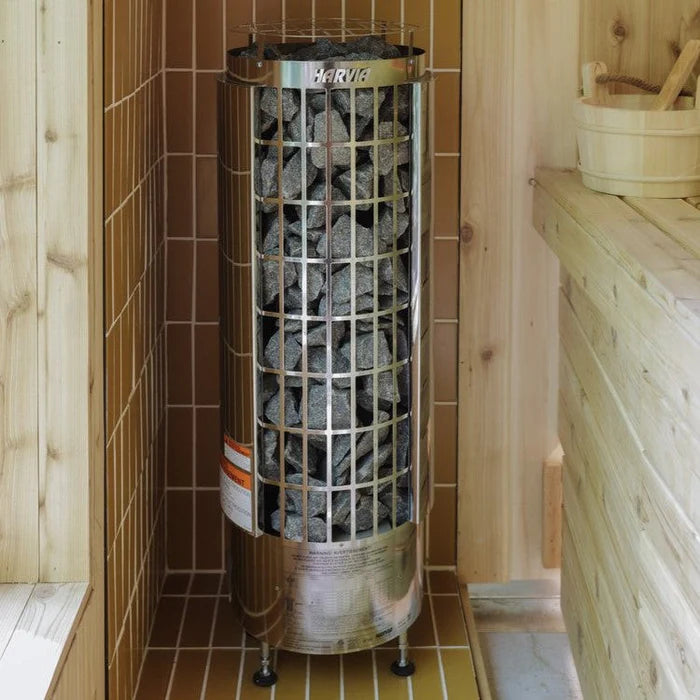

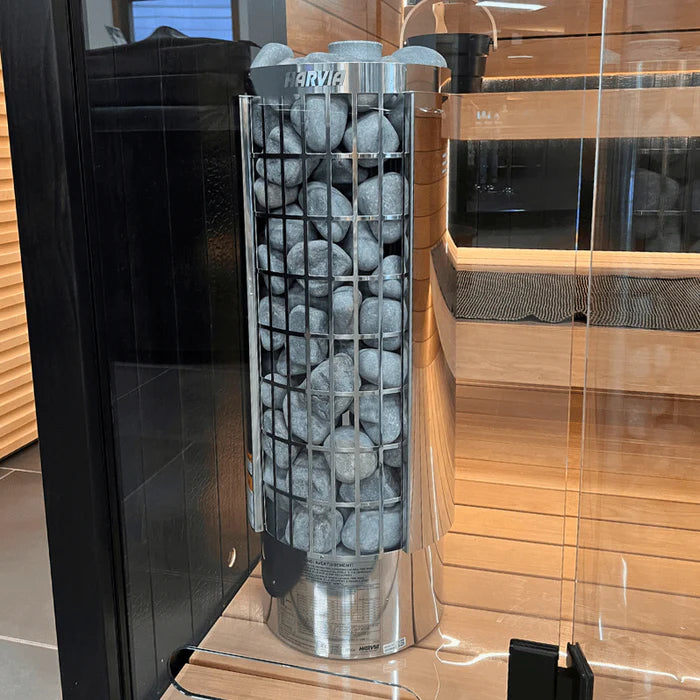

The Cilindro’s vertical profile works well along a sauna wall, in a corner, or as part of a more design-forward heater layout when installed according to Harvia requirements.

Made by Harvia

Harvia is one of the most recognized sauna heater manufacturers in the world, and the Cilindro series is designed, engineered, and made in Finland.

What Makes the Harvia Cilindro Different?

More Stones, More Steam, More Sauna Ritual

The Cilindro series is built around one of the most important parts of sauna bathing: the stones.

Instead of hiding a smaller stone bed inside a standard heater body, the Cilindro exposes a large vertical stone column. This creates a beautiful visual presence while allowing bathers to interact with the heater in a more traditional way.

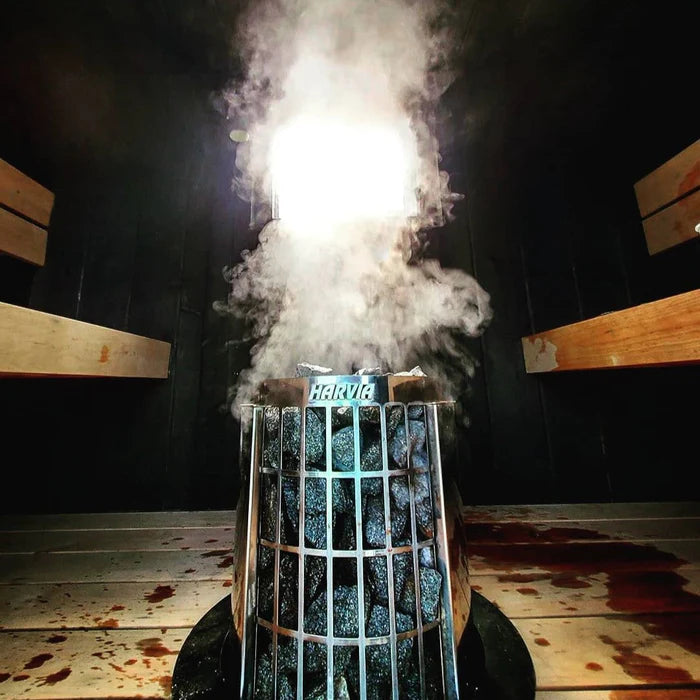

Water poured onto the side of the heater produces a softer, more gradual steam. Water poured over the top creates a stronger, more immediate löyly. That flexibility makes the Cilindro especially enjoyable for sauna users who like to control the feel of each session.

Harvia Cilindro PC90E 9kW Sauna Heater

Premium stainless steel electric sauna heater with modern pillar-style design.

Installation & Operation Manual

Manufacturer documentation included for installation, safety clearances, operation, and maintenance.

Manufacturer Warranty Information

Warranty documentation included with the heater.

Required but Sold Separately

• Harvia Xenio or Fenix Control System

• Harvia AC3000 Sauna Stones

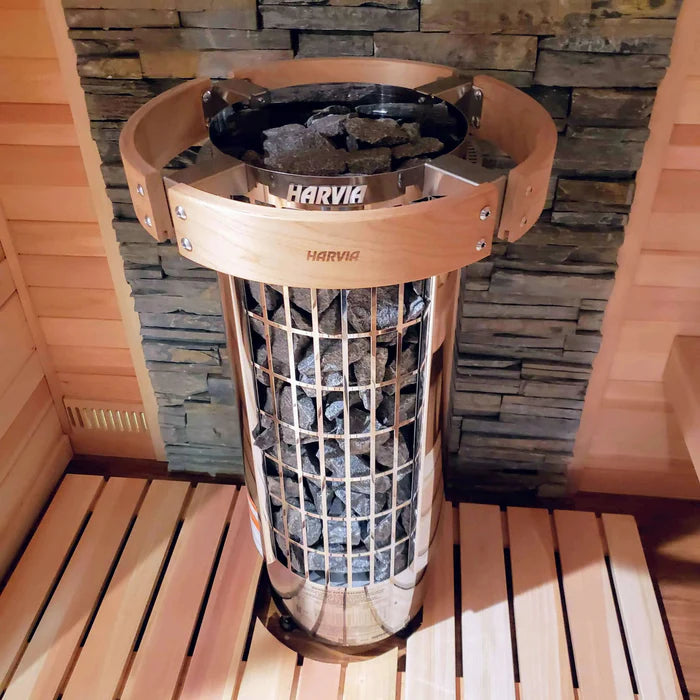

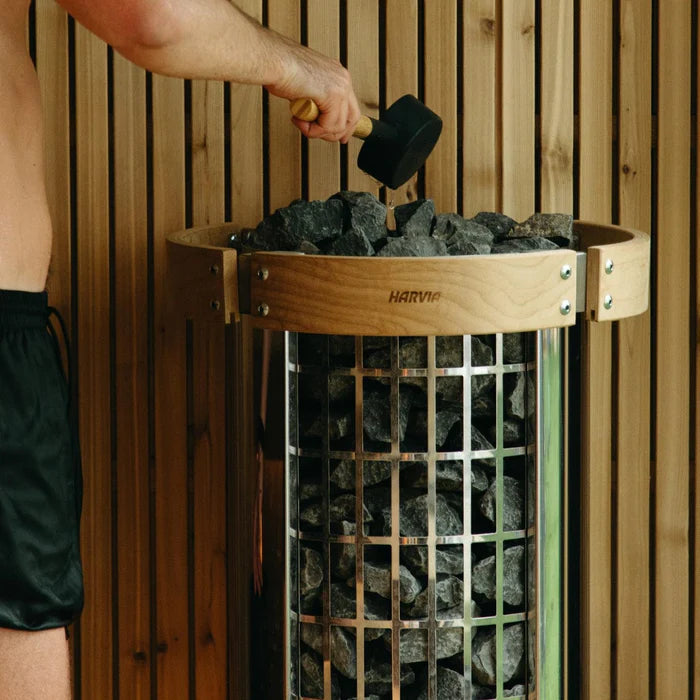

• Optional Harvia Cilindro Safety Rail

The standalone Cilindro PC90E heater does not include the controller or sauna stones. These items are required for operation and should be selected from the add-ons above when building your heater package.

General

Brand: Harvia

Model: Cilindro PC90E

Model Number: HPCS9U1HUL

Heater Type: Electric Sauna Heater

Mounting Style: Pillar / Floor-Standing

Power Rating: 9kW

Primary Fuel: Electric

Main Material: Steel / Stainless Steel

Installation Orientation: Vertical

Country of Manufacture: Finland

Recommended Use: Medium to larger traditional sauna rooms, home saunas, barrel saunas, outdoor sauna kits, and custom sauna spaces

Sauna Room Sizing

Recommended Sauna Room Size: Approx. 141–494 adjusted cu. ft.

Metric Range: Approx. 4–14 m³

Important Sizing Note: Glass, tile, stone, brick, concrete, log walls, and other cold surfaces can increase adjusted room volume.

Electrical

Supply Voltage: 240VAC

Phase: Single Phase

Frequency: 60 Hz

Nominal Amps: 37.5A

Control Type: Separate control required

Compatible Controls: Harvia Xenio or compatible Harvia Fenix control package

Professional Installation: Required by a licensed electrician

The Harvia Cilindro PC90E must be installed by a licensed electrician according to the official Harvia installation manual, local code, and all applicable safety requirements. Always confirm final breaker, wiring, control compatibility, and installation details with the official manual and your electrician.

Stone Capacity

Stone Amount: Approx. 200 lbs

Recommended Stone Size: Ø 5–10 cm

Stones Required: Yes

Stones Included with Base Heater: No

Required Stone Package: Typically 5 boxes of Harvia AC3000 sauna stones

Dimensions & Weight

Width: 14"

Depth: 13"

Height: 40"

Heater Weight: Approx. 37.5 lbs

Gross Weight Without Stones: Approx. 41.5 lbs

Safety Clearances

Side Clearance to Non-Combustible Material: Approx. 1.2"

Behind Clearance to Non-Combustible Material: Approx. 1.2"

Ceiling Clearance: Approx. 35"

Floor Clearance: Depends on connection configuration

Always confirm final clearances with the official Harvia installation manual before installation. Harvia’s current technical data lists clearance values for the PC90E and notes that users should check the product manual for updated information before use.

Professional Installation Required

The Harvia Cilindro PC90E must be installed by a licensed electrician and in accordance with the official Harvia installation manual, local electrical code, and all required safety clearances.

Because the PC90E requires a separate compatible control system, sauna stones, correct wiring, proper placement, and required clearances, installation should be planned before the sauna is completed whenever possible.

Data Sheet

Harvia Cilindro E-Sauna Heater Manual

At NW Immersion, we believe your sauna experience should feel premium from the moment you place your order. Your Harvia KIP80B Electric Sauna Heater will be carefully packaged and shipped directly to your doorstep using trusted carriers such as FedEx or UPS for safe and reliable delivery.

• Fast FREE Nationwide Shipping – Orders ship quickly from authorized U.S. distribution centers for efficient delivery.


• Tracking Provided – You’ll receive tracking information as soon as your order ships so you can monitor delivery every step of the way.

• Secure Premium Packaging – Your sauna heater is professionally packaged to help ensure it arrives in perfect condition.

• Market-Leading U.S.-Based Customer Support – Our knowledgeable sauna experts are real, live professionals based in the United States and available to assist with product questions, heater sizing, installation guidance, safety clearances, shipping updates, and creating the perfect sauna setup for your space.


Harvia Manufacturer Warranty

The Harvia Cilindro PC90E 9kW Electric Sauna Heater is backed by Harvia’s manufacturer warranty when installed and used according to Harvia’s official instructions.

Current product information lists a limited 1-year warranty for consumer use and limited 1-year warranty for commercial use for this model. Warranty coverage may vary by component, installation type, use environment, and maintenance.

As an Authorized Harvia Dealer, NW Immersion is here to help with heater sizing, product selection, delivery coordination, troubleshooting, warranty guidance, and long-term support.

Always refer to the official Harvia warranty documentation included with your heater for complete terms and final coverage details.
