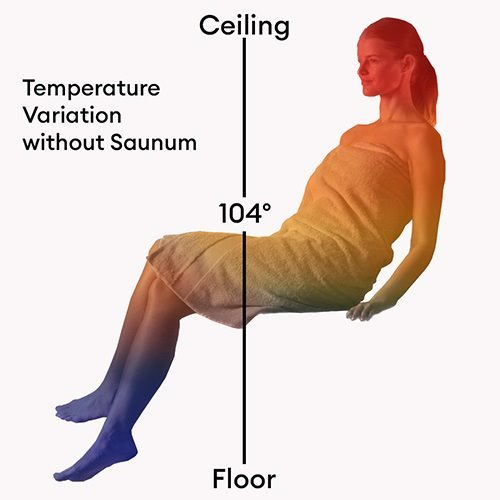

More Even Heat from Head to Toe

Saunum’s patented air mixing system helps blend hotter air near the ceiling with cooler air near the floor, creating a more balanced sauna climate throughout the room.

Traditional Sauna Heat + Modern Climate Control

Use the Air 5 as a traditional electric sauna heater, or activate the climate equalizer when you want softer, more even heat.

Designed for Authentic Löyly

The Air 5 is built for traditional sauna bathing, allowing you to pour water over heated sauna stones to create steam and humidity.

Large Stone Capacity

With approximately 110 lbs of stone capacity when used with the protective grille, the Air 5 provides a generous stone mass for steady heat and beautiful steam.

Includes Himalayan Salt Spheres

The Air 5 includes Himalayan salt spheres designed for placement in the outgoing air path when the climate equalizer is active.

Premium AirIQ Control Compatibility

When paired with the required Saunum AirIQ controller, the Air 5 gives you digital control over temperature, air circulation, humidity settings, and optional WiFi app control.

Ideal for Compact to Mid-Size Sauna Rooms

The Saunum Air 5 is designed for sauna rooms approximately 106–212 adjusted cubic feet, making it a strong choice for many residential indoor and outdoor traditional sauna builds.

Available in Black or Stainless

Choose a finish that complements your sauna interior, from modern black contrast to clean stainless steel.

What Makes Saunum Different?

Climate Equalization, Not Just Heat

Most electric sauna heaters create heat and rely on natural convection to move that heat through the room. Saunum goes further by integrating a climate equalizing system directly into the heater design.

The Air 5’s fan system draws hot air from the upper sauna room and cooler air from the lower sauna room, blends the two, and circulates the more balanced air back into the cabin. This helps reduce the sharp temperature difference between upper and lower bench levels and creates a more consistent sauna environment.

For customers who find standard sauna heat too intense around the head, or who want warmer feet and a more even full-body sweat, Saunum offers a unique and highly differentiated sauna experience.

Is the Saunum Air 5 Right for Your Sauna?

Best for Compact to Mid-Size Traditional Sauna Rooms

The Saunum Air 5 is best suited for sauna rooms approximately 106–212 adjusted cubic feet.

To calculate your basic sauna room size:

Length × Width × Height = Cubic Feet

Then account for cold surfaces such as:

• Glass walls or large glass doors

• Tile

• Stone

• Brick

• Concrete

• Log walls

• Other uninsulated or heat-absorbing surfaces


These surfaces increase the effective heating demand of the sauna room. If your sauna has significant glass, tile, stone, or other cold surfaces, you may need a larger heater model.

Not sure which Saunum heater is right for your sauna? Contact NW Immersion before ordering and we can help confirm sizing, controls, stone requirements, and installation considerations.

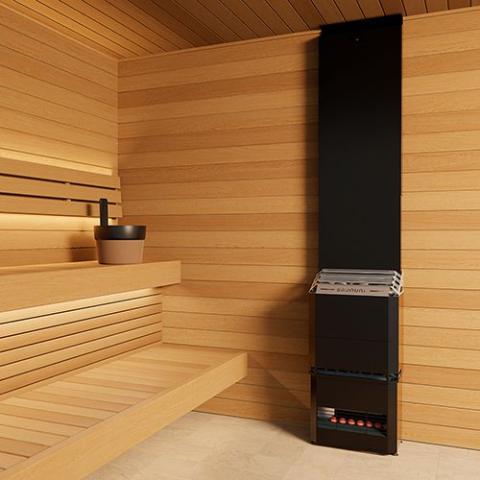

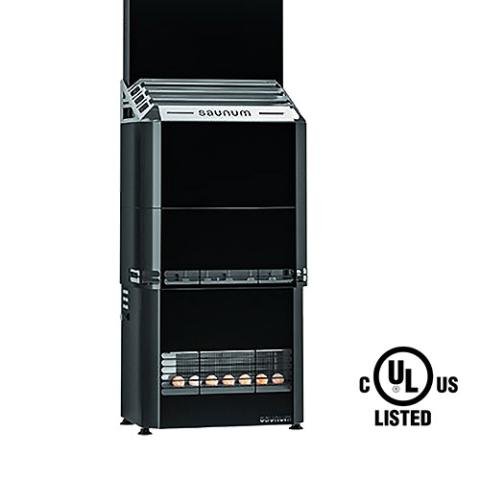

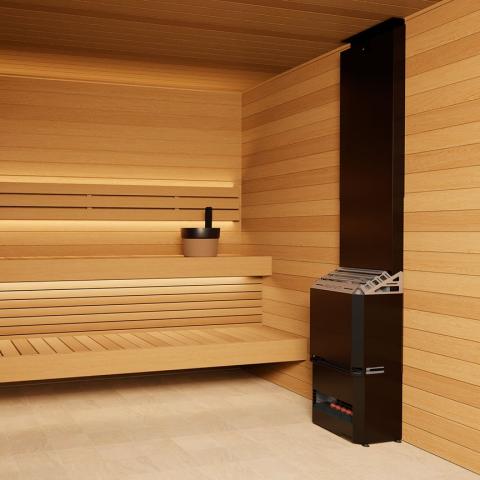

Saunum Air 5 Heater

Premium 5kW electric sauna heater with integrated climate equalizing system.

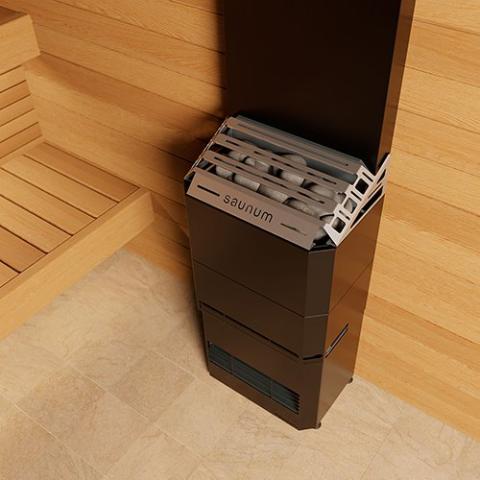

Steel Stone Basket

Designed to hold sauna stones for traditional sauna heat and löyly.

Heat Equalizing Module

The patented Saunum air blending system that helps circulate and balance sauna air.

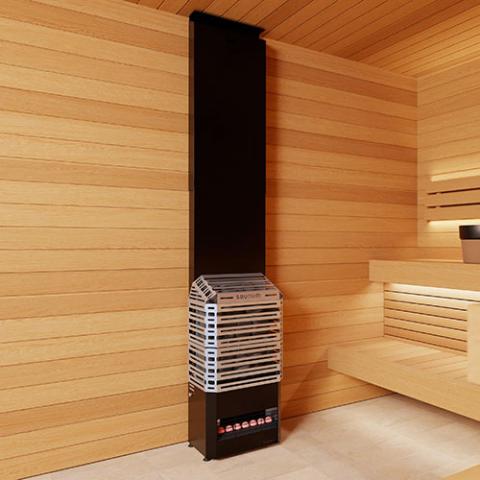

Telescopic Hot Air Intake

Draws hot air from the upper sauna room into the climate equalizing system.

Heating Element Air Tunnels

Included air tunnels designed for the integrated heater and airflow system.

Himalayan Salt Spheres

Includes Himalayan salt spheres for placement in the outgoing air path when using the air blending system.

Hot Air Intake Cap

Included component for proper installation and finished heater assembly.

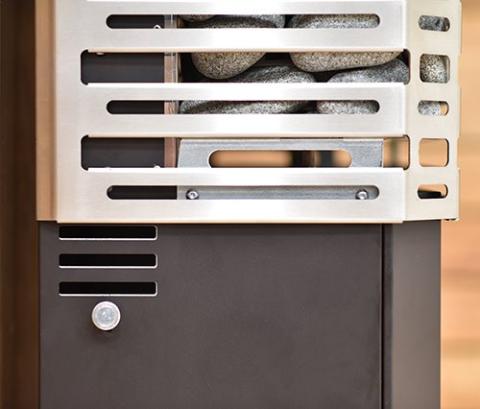

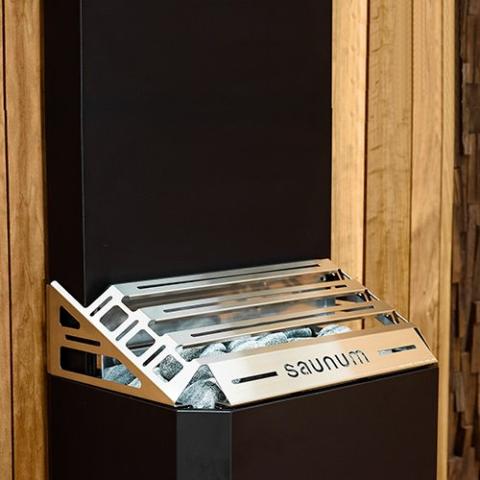

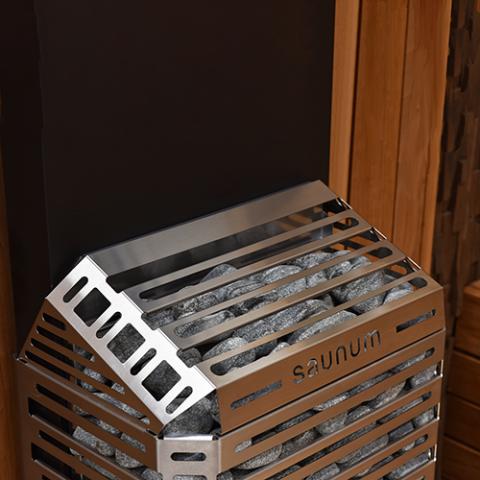

Stainless Steel Protective Grille

Included protective grille for the stone basket area.

Electrical Cables & Sensors

Includes manufacturer-supplied cables and sensors required for proper heater and climate equalizer installation.

Quick Install Guide + Installation Manual

Manufacturer installation and operation documentation included.

Required but Sold Separately

• Saunum AirIQ Controller

• Sauna stones


These items are required for operation and should be selected from the add-ons above when building your heater package.

General

Brand: Saunum

Model: Air 5

Heater Type: Electric Sauna Heater with Climate Equalizer

Mounting Style: Floor-Standing

Power Rating: 5kW

Available Finishes: Black or Stainless

Recommended Use: Compact to mid-size traditional sauna rooms

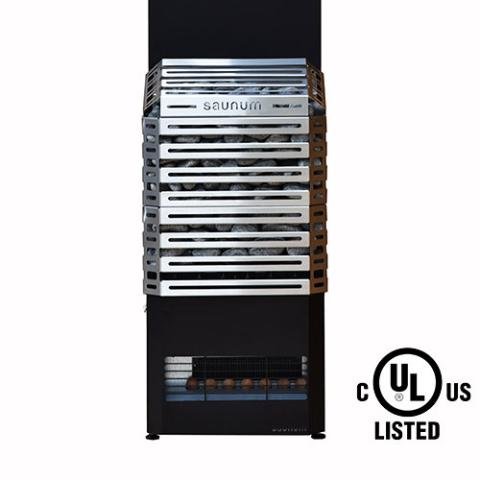

Certification / Safety Rating: UL Listed

Sauna Room Sizing

Recommended Sauna Room Size: Approx. 106–212 adjusted cu. ft.

Maximum Temperature: Up to 194°F

Minimum Ceiling Height: 6.1 ft

Important Sizing Note: Glass, tile, stone, brick, log walls, and other cold surfaces can increase the adjusted room volume. When in doubt, contact NW Immersion before purchase so we can help confirm proper sizing.

The Saunum Air 5 is designed for compact to mid-size traditional sauna rooms. Proper heater sizing should always account for adjusted cubic footage, not just basic room dimensions.

Electrical

Supply Voltage: 240V

Phase: Single Phase

Amperage: 20.6A

Professional Installation: Required by a licensed electrician

Circuit Breaker: Confirm with the official Saunum installation manual

Wire Size: Confirm with the official Saunum installation manual

The Saunum Air 5 requires a 240V single-phase electrical line and must be installed by a licensed electrician according to the official Saunum installation manual, local code, and all applicable safety requirements.

Stone Capacity

Stone Capacity with Protective Grille: Approx. 110 lbs

Stone Capacity without Protective Grille: Approx. 130 lbs

Stones Required: Yes

Stones Included with Base Heater: No

Required for Operation: Sauna stones must be added separately

The Air 5 requires sauna stones for operation. Add the required stone package when building your Saunum Air 5 heater setup.

Dimensions & Weight

Width: 18.3"

Depth: 12.4"

Height: Adjustable from 75.4"–95"

Heater Weight: Approx. 147 lbs

Shipping Weight with Sauna Stones: Approx. 279 lbs

Heater / Heating Element Materials: Stainless steel

Controls

Required Controller: Saunum AirIQ Controller

Included with Base Heater: No

WiFi Compatibility: Yes, when paired with AirIQ controller

Controls: Temperature, humidity, and air circulation adjustments

Optional Add-On: Saunum AirIQ In-Sauna Button Set

The AirIQ controller is required for operation and provides digital control over the sauna heater and climate equalizing system.

Installation Notes

Professional Installation Required

The Saunum Air 5 must be installed by a licensed electrician and in accordance with the official Saunum installation manual, local electrical code, and all required clearances.

Because this heater includes both heating and climate equalizing functions, proper installation is especially important. The AirIQ control system, sensors, door sensor, wiring, clearances, hot air intake, and stone basket must all be installed correctly for safe operation and best performance.

Always refer to the official manufacturer documentation before installation.

Click Here for the Saunum Air Sauna Heater Installation & Owners Manual

Click Here for the Saunum Air Quick Assembly Guide

Click Here for the Saunum Air Warranty

Free Shipping Included

The Saunum AIR 5 WiFi Sauna Heater Package includes free shipping within the contiguous United States when purchased from NW Immersion.

Because this package includes the heater, control system, sauna stones, and related components, items may ship in multiple boxes or by freight depending on warehouse packaging and carrier requirements.

When in stock, most Saunum heater packages typically ship within approximately 3–6 business days. Once your order ships, tracking information will be provided by email. If the order ships by freight, the carrier may contact you directly to coordinate delivery.

For current stock availability, delivery timing, or project-specific planning, call or text 360-360-6968 or email info@nwimmersion.com before ordering.

Click here to see full Saunum Air Warranty

Saunum Manufacturer Warranty

The Saunum Air 5 Sauna Heater with Climate Equalizer is backed by Saunum’s manufacturer warranty against defects in materials and assembly for the applicable warranty period. If the device is found to be defective due to materials or workmanship during the warranty period, Saunum’s recommended repair partners may repair or replace the device or defective component under the warranty terms.

For private residential sauna use, the Saunum climate device warranty period is 2 years from the date of purchase. For public sauna use, the warranty period is 1 year.

Warranty coverage requires that the device be installed properly, including connection to the power network by a qualified electrician in accordance with applicable regulations. A completed installation report must also be submitted with any warranty claim.

The warranty does not cover routine maintenance, normal wear and tear, misuse, improper installation, unauthorized repairs, transport risks, damage from accidents or external factors, or breakage caused by the use of stones or salt orbs not recommended by Saunum. Heating elements and salt are also excluded from warranty coverage.

As an Authorized Saunum Dealer, NW Immersion is here to help with heater sizing, product selection, delivery coordination, installation guidance, warranty documentation, and support if an issue arises.

Please review the linked Saunum warranty PDF for complete terms, exclusions, and claim requirements before installation and use.
